SimCorder Soft

SimCorder Soft
  • license key required
  • Basic, Alarm, Network (Server and Terminal) versions
  • semiScada module - monitoring of current measurements in a transparent graphical method with the possibility of immediate evaluation and response to the process status
  • data downloads from SIMEX products equipped with RS-485 serial communication interface with Modbus RTU protocol
  • current measurements displayed in tables, diagrams or visualisation windows
  • ability to send email notifications and SMS in the Alarm or Network versions
Choose a product
Ask about product
+48 58 762 07 77
Description

The SimCorder Soft works with SIMEX products equipped with RS-485 interface. It enables the visualization, archiving and printing of measurements (e.g. temperature, humidity, pressure). Work with network of units takes place through an RS-485 serial interface. Connecting a network of units to a serial port (RS-232) or USB port of a PC is possible thanks to a converter (RS-485 to RS-232 or RS-485 to USB) produced by SIMEX. The new SimCorder PC Software v.4 with semiSCADA module can be equipped with the semiSCADA module, which features presenting current measurements in a clear graphical way. The semiSCADA funcionality enables you to place various indicators and objects like tanks, thermometers, bars, etc., as well as background images on the plan and show a real appearance of room or object being monitored. You can also observe measurements at different levels of the process or system.

It consists of 3 installation versions of following software:

  1. The SimCorder BASIC is the elementary version of SimCorder Software with possibility of installation on the PC directly connected to network of units. GSM notification and signalisation of system alarm states is not available in BASIC version. Informations of exceptions and errors are accessible only as text messages (in Device infos tab of Current measures menu).
  2. The SimCorder ALARM is the version of SimCorder Software with possibility of installation on the PC directly connected to network of units. In comparison with BASIC version ALARM is expanded with GSM notification and signalisation of system alarm states.
  3. The SimCorder NETWORK is network version of SimCorder Software with possibility of installation on max. 10 terminal stations. One package named SimCorder Soft NETWORK included the SERVER and TERMINAL versions. The TERMINAL version allows visualization (via internet) of devices working controlled directly by SERVER version. TERMINAL version allows exclusively visualisation of the settings, change of the settings can be made only via SERVER version installed on the PC directly connected to network of devices. SERVER version makes available data base containing measurement results, while TERMINAL version allows remote access to this data base.

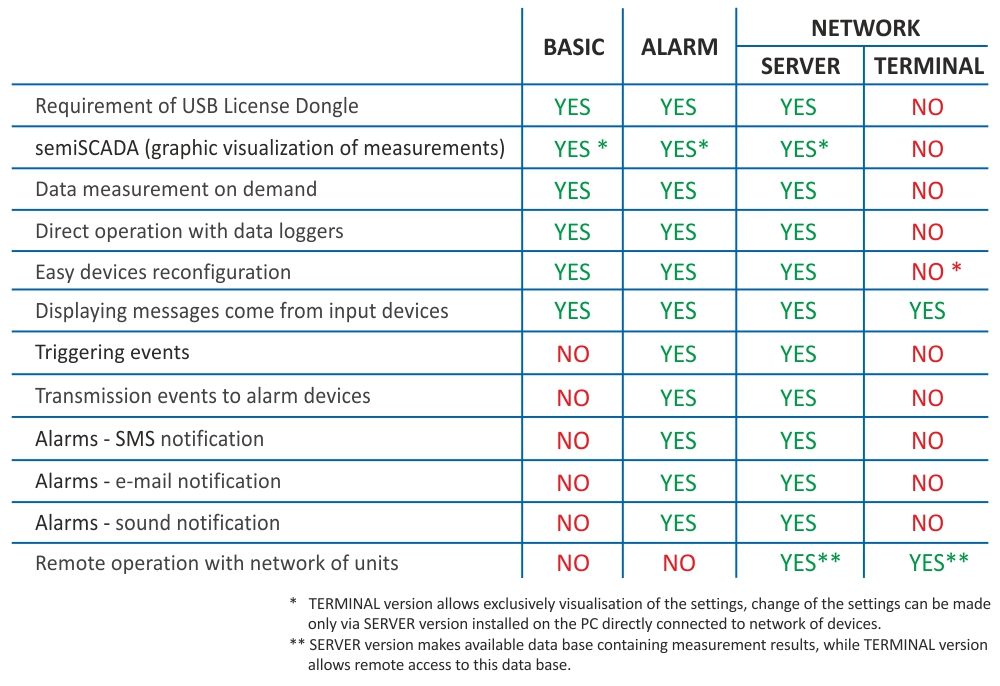

Warning! The TERMINAL version of the SimCorder Soft Network does not support semiScada, even if it is purchased with the SERVER version of the program. Please refer to the table below for the appropriate SimCorder version:
